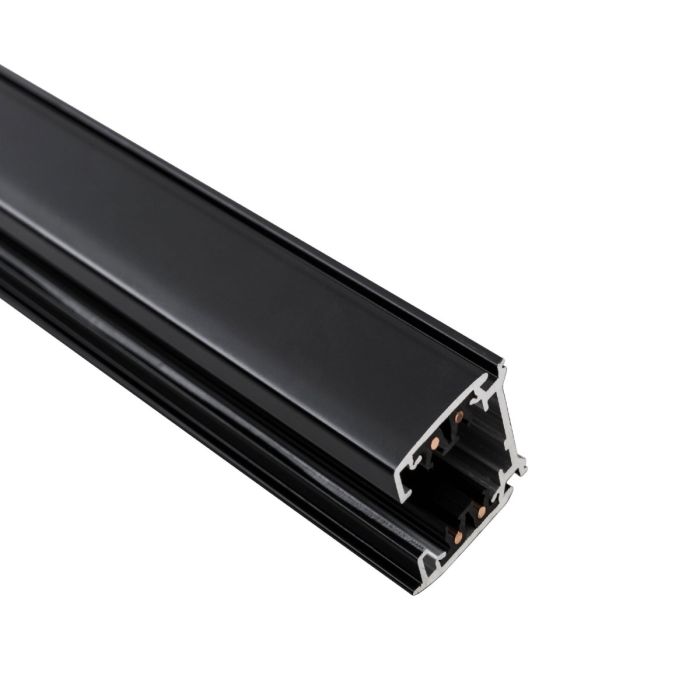

3-Phase Voltage Rail 3 Meter Black

This SPS 2 3-phase track of 3 metres in black is the basis of a flexible lighting system for shops, showrooms, galleries, hospitality and homes. This is a 3-phase track (also called a three-phase or 3-circuit track): you can divide the fittings over three separate groups, each operated with its own switch.

How does it work and what do you need?

The track works on 230V: you click in fittings with the right track adapter and they get mains voltage directly, without a separate driver or transformer. What you do need is a power feed (end feed left or right, or a centre feed) with which the electrician connects the track to the mains. So that power feed is not a transformer or driver, but the connection point of the track. To complete the track you need, besides the track: one power feed (left or right, depending on which side the power comes in), end caps for the free ends, possibly couplers (straight, L-corner, T-piece or cross) to connect tracks, mounting clips or a pendant kit to hang the track, and of course the fittings with a suitable 3-phase adapter. Within one installation always use components from the same series; surface, recessed and DALI components are not interchangeable. Have the connection to the mains carried out by a qualified electrician.

Dimensions: 32 × 35.5 × 3000 mm.

Technical specifications

In short: SPS 2 3-phase track, 230V, IP20, colour black, 2-year warranty.

Frequently asked questions

Do I need a transformer?

No. The track works on 230V. Fittings with a track adapter connect directly; you only need a power feed to connect the track to the mains.
