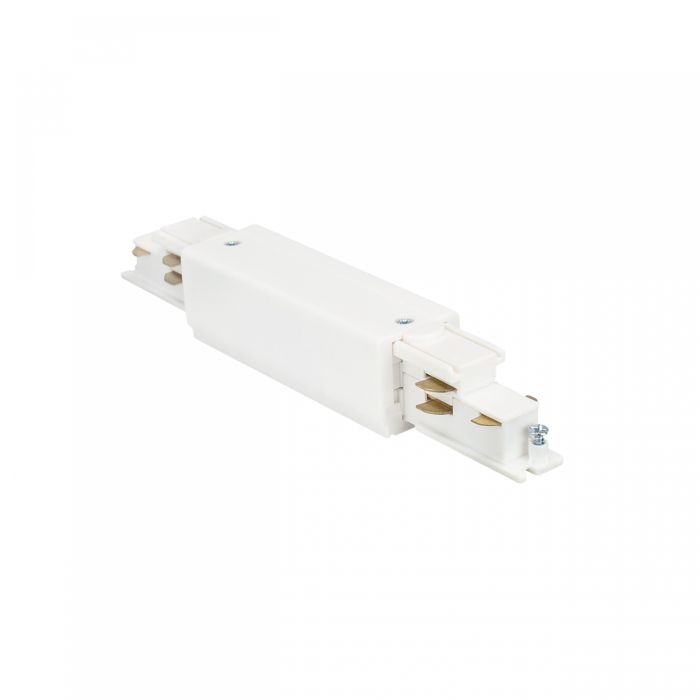

DALI 3-Phase Rail Power Supply Internal White

With this centre feed for the SPS DALI track in white you connect the track to the 230V mains. You place a centre feed between two tracks, so that the power goes from the middle to both sides. Handy if the connection point in the ceiling is not at the end of the track.

Important to know

Despite the name "power supply", this is not a transformer or driver. It is the connection piece through which the mains voltage enters the track. The fittings on this track work directly on 230V. Per track system you need at least one power feed. Whether you choose left or right depends on the side where the earth conductor of the track is and where the power cable comes in; your electrician can see this immediately from the track profile. Have the connection to the mains carried out by a qualified electrician.

Dimensions: 32 × 32 × 203 mm.

Technical specifications

In short: SPS DALI track, 230V with DALI control line, IP20, colour white, 2-year warranty.

Frequently asked questions

Is this a driver or transformer?

No. It is the mains connection of the track. The fittings work on 230V.
