End feed left for the SPS DALI track, white. Connects to 230V, no transformer.
-
3 days -
2 years -
32 x 32 x 111 mm -
IP20
- Categories:
- 3-Phase Tracks & Accessories

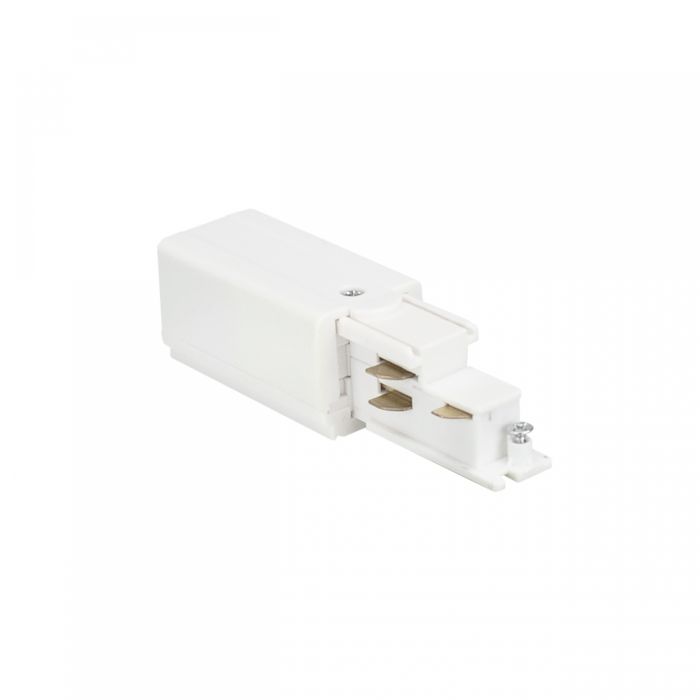

With this end feed left for the SPS DALI track in white you connect the track to the 230V mains. You place it at the start of the track, with the connection on the left-hand side.
Important to know
Despite the name "power supply", this is not a transformer or driver. It is the connection piece through which the mains voltage enters the track. The fittings on this track work directly on 230V. Per track system you need at least one power feed. Whether you choose left or right depends on the side where the earth conductor of the track is and where the power cable comes in; your electrician can see this immediately from the track profile. Have the connection to the mains carried out by a qualified electrician.
Dimensions: 32 × 32 × 111 mm.
Technical specifications
In short: SPS DALI track, 230V with DALI control line, IP20, colour white, 2-year warranty.
Frequently asked questions
Is this a driver or transformer?
No. It is the mains connection of the track. The fittings work on 230V.
| Dimay Sku | DM100356 |
|---|---|
| Dimensions | 32 x 32 x 111 mm |
| Weight | 0.066 kg |
| Delivery Time | 3 days |
| Voltage (V) | 230V |
| Housing Color | White |
| Net Weight | 0.066 |
| Light Source Included | No |
| Weight | 0.07 |
| Application | indoor use only |
| Ambient Temperature (°C) | -20°C to +40°C. |
| Operating Temperature (°C) | -20/+40 |
| Housing | ALUMINUM |
| Warranty | 2 years |
| IP Rating | IP20 |
