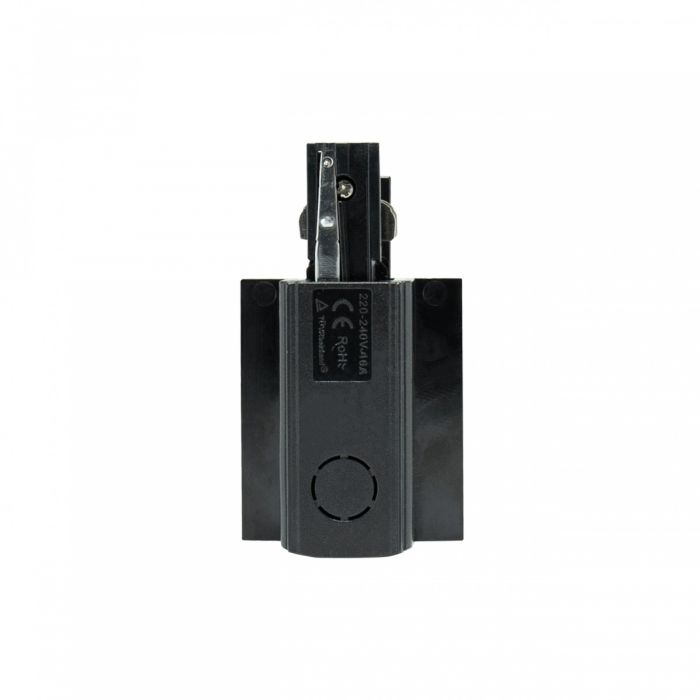

End feed right for the SPS recessed track (3-phase), black. Connects to 230V, no transformer.
-
3 days -
2 years -
55 x 36 x 98 mm -
IP20
- Categories:
- 3-Phase LED Track Lighting
With this end feed right for the SPS recessed track (3-phase) in black you connect the track to the 230V mains. You place it at the start of the track, with the connection on the right-hand side.
Important to know
Despite the name "power supply", this is not a transformer or driver. It is the connection piece through which the mains voltage enters the track. The fittings on this track work directly on 230V. Per track system you need at least one power feed. Whether you choose left or right depends on the side where the earth conductor of the track is and where the power cable comes in; your electrician can see this immediately from the track profile. Have the connection to the mains carried out by a qualified electrician.
Dimensions: 55 × 36 × 98 mm.
Technical specifications
In short: SPS recessed track (3-phase), 230V, IP20, colour black, 2-year warranty.
Frequently asked questions
Is this a driver or transformer?
No. It is the mains connection of the track. The fittings work on 230V.
| Dimay Sku | DM96270 |
|---|---|
| Voltage (V) | 230V |
| Dimensions | 55 x 36 x 98 mm |
| IP Rating | IP20 |
| Warranty | 2 years |
| Ambient Temperature (°C) | -20°C to +40°C. |
| Housing Colour | Kunststof |
| Housing Color | BLACK |
| Weight | 0.061 kg |
| Delivery Time | 3 days |
| Light Source Included | No |
| Application | indoor use only |
