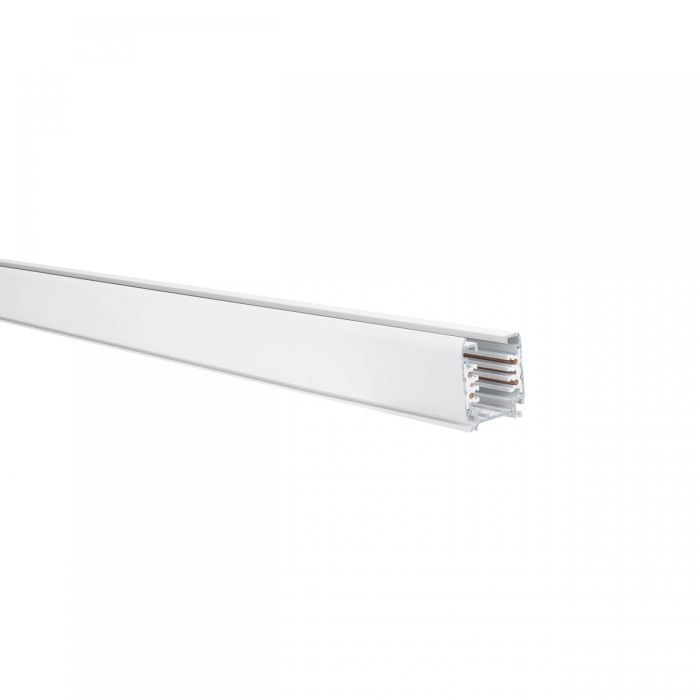

3-Phase Track Rail 1 Meter White

This SPS DALI track of 1 metres in white is the basis of a flexible lighting system for shops, showrooms, galleries, hospitality and homes. In addition to the live conductors, this track also has a DALI control line, so you can dim and switch fittings with a DALI adapter individually via a DALI control.

How does it work and what do you need?

The track works on 230V: you click in fittings with the right track adapter and they get mains voltage directly, without a separate driver or transformer. What you do need is a power feed (end feed left or right, or a centre feed) with which the electrician connects the track to the mains. So that power feed is not a transformer or driver, but the connection point of the track. To complete the track you need, besides the track: one power feed (left or right, depending on which side the power comes in), end caps for the free ends, possibly couplers (straight, L-corner, T-piece or cross) to connect tracks, mounting clips or a pendant kit to hang the track, and of course the fittings with a suitable DALI track adapter. Within one installation always use components from the same series; components of the standard SPS 2 track do not fit the DALI track. Have the connection to the mains carried out by a qualified electrician.

Dimensions: 32 × 36 × 1000 mm.

Technical specifications

In short: SPS DALI track, 230V with DALI control line, IP20, colour white, 2-year warranty.

Frequently asked questions

Do I need a transformer?

No. The track works on 230V. Fittings with a track adapter connect directly; you only need a power feed to connect the track to the mains.
