LED Anti-Glare High Bay 120W – 19,200 Lumen – 4000K – UGR<21 – Dimmable 0-10V – Philips Driver

This glare-free LED high bay of 120W delivers 19,200 lumens with a high efficiency of 160 lumens per watt. The fitting has been developed for industrial halls, warehouses, production areas, workshops and sports halls where people work under the light for long periods and regularly look up, for example when operating a forklift or picking goods from high racking.

Thanks to the special optic the glare rating stays below UGR 21. As a result the light feels calm on the eyes and you do not look straight into bright LED points, while the floor is still lit powerfully and evenly.

Light colour and light distribution

The light colour is 4000K neutral white, a bright and pleasant working light in which colours look natural, the most popular light colour for workspaces. The beam angle of 110 degrees gives a wide, even distribution over the work floor, so with a regular grid of lamps you get a uniform light level. The colour rendering is higher than CRI 80, so colours, labels and markings are clearly recognisable.

Driver and control

The driver is built in and is therefore simply included. You don't need to order a separate driver or power supply: you connect the fitting directly to the 230V mains. This version contains a Philips driver. The driver is dimmable via 0-10V. With a 0-10V controller or a simple lighting control system you set the brightness; without a dimmer the lamp runs at full power. The lamp is supplied with a connection cable of 1 metres. Have the electrical connection carried out by a qualified electrician.

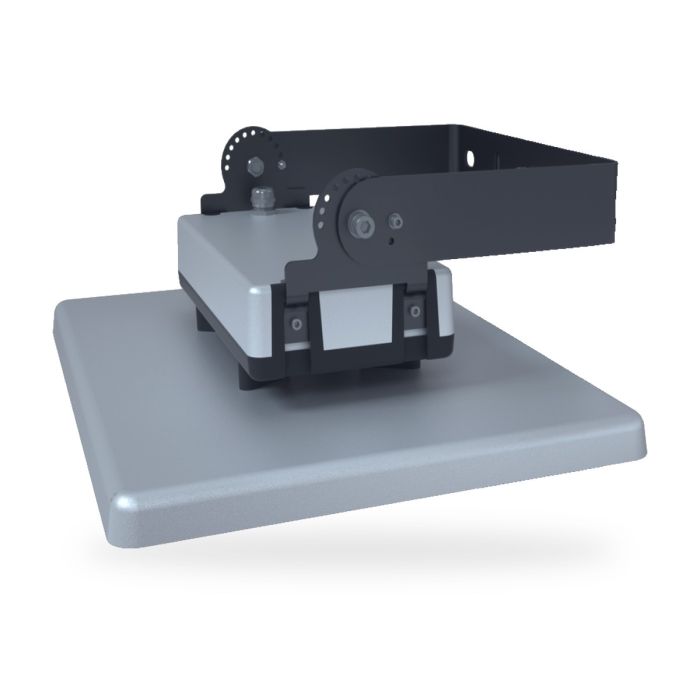

Option: mounting bracket

If you do not want to suspend the fitting but mount it directly against a ceiling, beam or wall, use the separately available mounting bracket. It is specially made for these glare-free high bays of 120W and 200W. The bracket is an option: suspending from a hook, chain or steel cable is also possible. You will find the bracket below under the matching products.

Technical specifications

In short: power 120W, luminous flux 19,200 lumens, efficiency 160 lm/W, light colour 4000K, colour rendering CRI >80, glare rating UGR <21, beam angle 110°, driver built in (Philips), dimmable 0-10V, connection cable 1 m and 5-year warranty.

Frequently asked questions

What does UGR <21 mean?

UGR is the measure of glare. A value below 21 is the European guideline for workplaces in halls and workshops. The lower the value, the less the light bothers you.

Is the driver included?

Yes, the driver is built in. You connect the lamp directly to 230V.

Do I need the mounting bracket?

No. The bracket is only needed if you want to mount the lamp firmly against a ceiling, beam or wall. Suspending is possible without a bracket.

You can download the datasheet on this product page.
