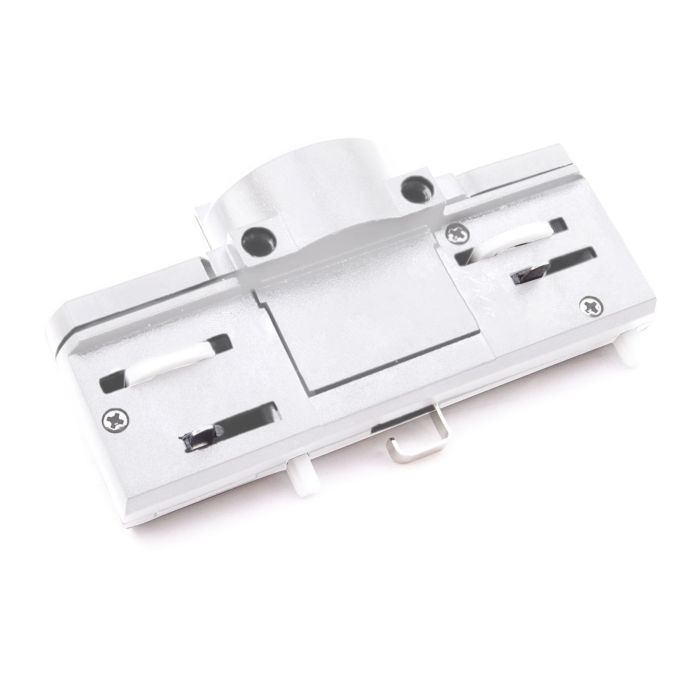

3-phase track adapter (slim) for the SPS 2 3-phase track, white.
-
3 days -
2 years -
95 x 53 x 35 mm -
IP20
- Categories:
- 3-Phase Tracks & Accessories
With this 3-phase track adapter (slim) in white you make a fitting suitable for the track. You attach the fitting to the adapter and click the adapter into the track; with the rotary knob you choose to which of the three phases (groups) the fitting is connected.
Goes with
The adapter fits the SPS 2 3-phase track. You connect the fitting itself with its own connection wire to the terminals in the adapter. Have the connection to the mains carried out by a qualified electrician.
Dimensions: 95 × 53 × 35mm.
Technical specifications
In short: SPS 2 3-phase track, 230V, IP20, colour white, 2-year warranty.
Frequently asked questions
Do I need an adapter?
Only if you want to mount a fitting without track adapter on the track. Track spots that already have an adapter click directly into the track.
| Dimay Sku | DM100364 |
|---|---|
| Dimensions | 95 x 53 x 35 mm |
| Weight | 0.058 kg |
| Delivery Time | 3 days |
| Voltage (V) | 230V |
| Housing Color | White |
| Net Weight | 0.058 |
| Light Source Included | No |
| Weight | 0.06 |
| Ambient Temperature (°C) | -20°C to +40°C. |
| Impact Resistance Rating (IK) | AFTER |
| Operating Temperature (°C) | -20/+40 |
| Housing | PLASTIC |
| Warranty | 2 years |
| IP Rating | IP20 |
