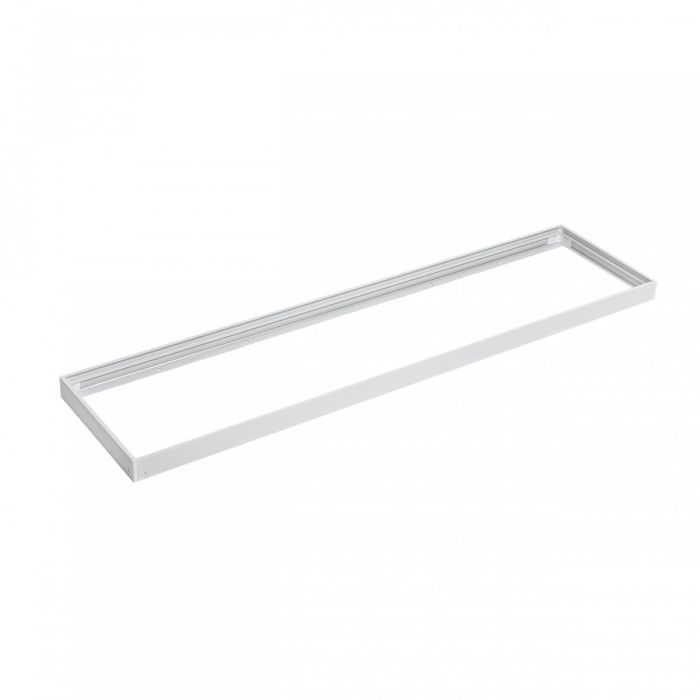

LED Panel Surface Mount Frame 300x1200x43 White

With this surface mounting frame of 120x30 cm you mount an LED panel of 1195 x 295 mm directly against a solid ceiling, without a suspended ceiling.

The frame is 43 mm high and is assembled with plastic clips. It is intended for thin edge-lit panels; for backlit panels of 30 mm thick choose the 58 mm frame.

Which frame should I choose?

If you have a suspended ceiling, you don't need a frame: the panel simply sits in the grid. You use a surface mounting frame on a solid ceiling of concrete, wood or plasterboard if you don't want to cut into the ceiling. With a recessed frame, on the other hand, you build the panel flush into a plasterboard ceiling. With a surface mounting frame, pay attention to the thickness of your panel: thin edge-lit panels of 9 to 15 mm fit frames of 43 and 58 mm, backlit panels of 28 to 30 mm only a frame of 58 mm.

Technical specifications

Dimensions 1195 x 295 x 43 mm, plastic clip connection, colour white.

What’s included? The LED is built in, so you do not need to buy a lamp.
