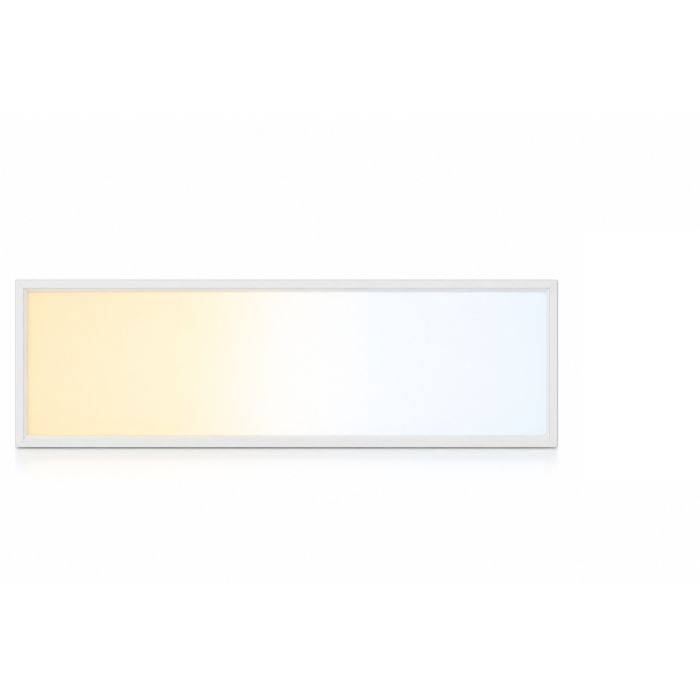

LED Panel 120x30 cm | 40W | Smart WiFi | CCT Dimmable | 3000K-6000K | CRI90 | Flicker-free

You control this LED panel of 120x30 cm with your smartphone via the free Smart Life app. You dim the panel, set the light colour between 3000K and 6000K, control panels individually or as a group and create scenarios such as sunrise or sunset. With 40W the panel delivers 3600 lumens with a colour rendering of CRI 93.

The panel is 9 mm thick, the WiFi driver is included and it runs on 220-240V mains voltage. It is very suitable for offices, meeting rooms, practices and homes.

Easy on the eyes

The panel has been measured according to the European ecodesign standards. The flicker value (Pst LM) is 0.1 and the stroboscopic value (SVM) 0.1, well below the European limits. This makes the light calm on the eyes, even when you work under it for long periods. The colour consistency of 4 MacAdam steps ensures that several fittings side by side give the same light colour.

Mounting options and accessories

The 119.5 x 29.5 cm panel fits directly into a suspended ceiling with a grid size of 600 mm (tile of 120 x 30 cm). You don't need anything else for that. If you don't have a suspended ceiling, choose one of the mounting options below. These are available separately and can be found below this product description.

With a surface mounting frame 120x30 cm you mount the panel against a solid ceiling. The 43 mm high frame is assembled with plastic clips, the 58 mm high frame with screws; both fit this thin panel.

With the Y suspension kit you hang the panel from steel cables, for example above a desk, workbench or counter.

Have the electrical connection carried out by a qualified electrician.

Technical specifications

The panel measures 1195 x 295 x 9 mm and has a power of 40W with a luminous flux of 3600 lumens at a beam angle of 120°. The colour temperature is adjustable from 3000K to 6000K and the panel is dimmable via the app. The colour rendering is CRI 93 and the energy label E. The WiFi driver supplies 750 mA. The panel has protection rating IP20 and is registered in the European EPREL database under number 952011.

Frequently asked questions

Which app do I need?

The panel works with the free Smart Life app for Android and iOS.

Is there also a version with a remote control?

Yes, this panel is also available with a remote control.

Where can you use it? The protection rating is IP20. This means: for dry indoor spaces only, such as living room, bedroom, hallway, office or shop. Do not use it in the shower or directly above a bath or shower, not outdoors and not in damp spaces such as a stable or an unheated barn.

Do you have a question about this product? Email us at info@dimay.com.
