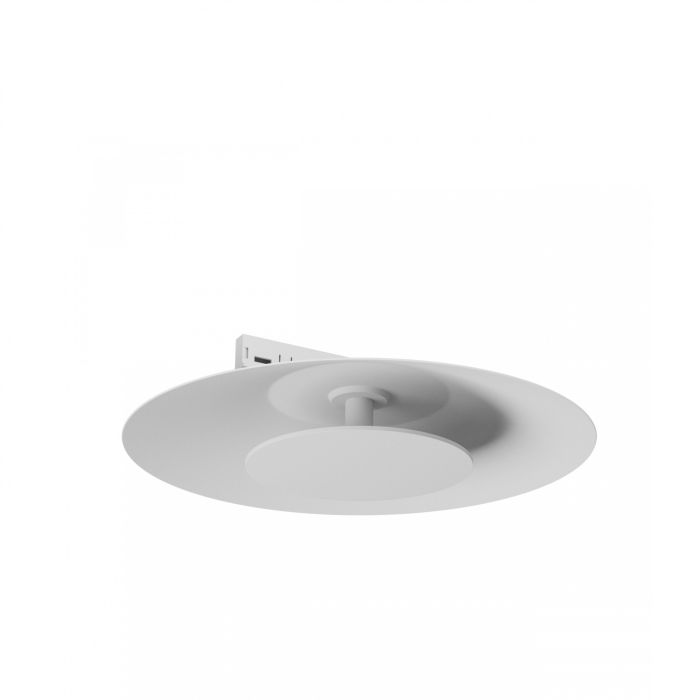

LED disc pendant lamp for narrow track 7W K3000 48V Ø170 mm White

This NANO pendant lamp of 7W delivers 250 lumens and is made for the 48V magnetic NANO track system. The housing is white. The fitting hangs from a cable below the track and gives atmospheric light above a table, bar or counter. You use it in homes, shops, showrooms, hospitality and offices where you want to be able to adapt the lighting flexibly.

How the system works

NANO is the extra slim version of the 48V track system. NANO is a system of its own: NANO fittings only fit NANO tracks and use NANO connectors. They do not fit the standard 48V-track. Please note: you do not connect this fitting directly to 230V. It only works in a NANO track fed by a 48V driver. The connector on the fitting is the click connection with the track, not a mains connection.

What do you need to make it complete?

For a working NANO installation you need a NANO track (surface, double pendant track or trimless pendant track, in 1 or 2 metres), a power connection for 48V driver (with cable of 200 mm or 2 metres) and an external 48V driver that your electrician connects to 230V. Important: that external 48V driver is not included with this fitting and is not supplied as a NANO component. Choose a 48V DC driver with a power at least equal to the total power of all fittings on the track; we are happy to help you choose. You link tracks with the NANO connectors (mechanical, electrical straight or flexible, or an L-corner), and you suspend them with the NANO pendant kit of 2 metres. You will find the available NANO components below under the matching products.

Light and technology

The light colour is 3000K warm white, an atmospheric, warm light colour that looks calm and homely. The beam angle is 100 degrees, a wide beam for general lighting. The colour rendering is CRI 90, so the colours of products, food and materials look very natural. This version is not dimmable. The dimensions are 170 × 40 mm.

Technical specifications

In short: NANO 48V system, power 7W, luminous flux 250 lumens, light colour 3000K, beam angle 100°, CRI 90, IP20, dimensions 170 × 40 mm, colour white, driver and track not included, 5-year warranty.

Frequently asked questions

Can I connect this fitting directly to a socket or to 230V?

No. The fitting runs on 48V and gets its power via the track. You need a track and a 48V driver; with NANO that is an external 48V driver that you choose separately.

How many fittings can I connect to one driver?

Add up the power of all fittings. The total must not exceed the power of the 48V driver.

Does this fitting fit the standard 48V-track?

No. NANO fittings only fit NANO tracks.

NANO is a 48V system without an internal driver: you need an external 48V driver, connected with the 48V power connector for the narrow track (WLD+80045–80048). The driver is not included. Questions about the right driver? Email info@dimay.com.

Suitable options include our 48V power supplies of 100 W, 150 W and 200 W (see the related products), but any suitable 48V driver from the market can be used. Load the driver at most up to its own power and keep a 10% margin (so approx. 135 W of fittings with a 150 W driver).
