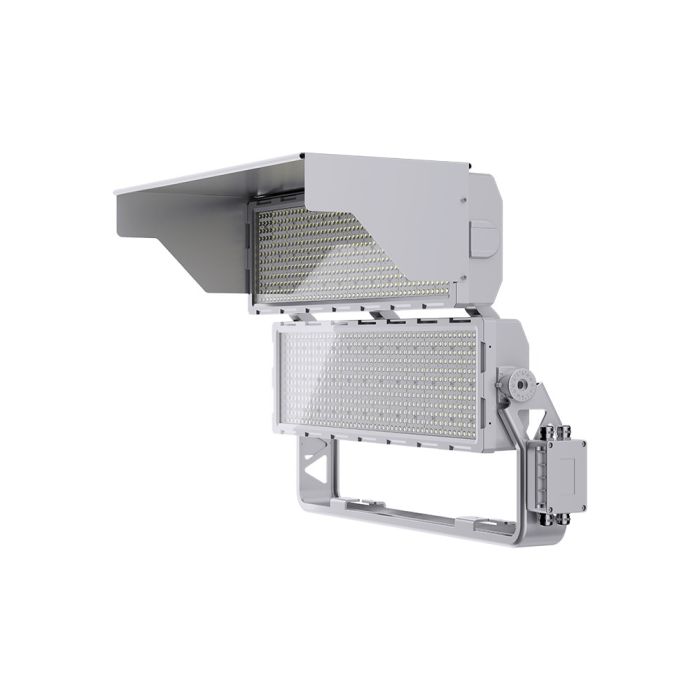

LED High Mast Light 1000W – 170,000 Lumen – 5000K – 20° – IP66 – Excl. Driver

This LED high mast lamp of 1000W delivers 170,000 lumens with an efficiency of 170 lumens per watt. With it you light large outdoor areas such as football pitches, sports parks, car parks, harbours, container terminals and industrial sites evenly and energy-efficiently from a high mast.

The lamp and the driver box are both supplied with cables, so the connection between the lamp and the driver box is included. A mains cable (the connection to the power grid) is not included: your installer connects a suitable cable to the driver box.

Please note: supplied without driver

This lamp is supplied without driver. For a working installation you need a matching driver of 1000W. Choose the LED driver 1000W DALI/DMX if you want to control the lighting via DALI or DMX, or the LED driver 1000W 1-10V for simple dimming via 1-10V. Because the driver is mounted separately from the lamp, you place it in an easily accessible spot on or near the mast, which makes maintenance much easier. You will find the suitable driver(s) below under the matching products; order the driver together with the lamp.

Light colour and light distribution

The light colour is 5000K daylight white, a fresh and bright light that increases contrast and works well where accurate vision and alertness are important. That is pleasant for athletes, spectators and camera images and gives a good overview on sites. The lamp is modular, built up from light modules. This version has a symmetrical beam angle of 20 degrees. With it you focus the light precisely from a high mast, so the playing field or work area is lit evenly even at a greater distance. The optic is designed to limit glare and light pollution.

Housing and lifetime

The housing is made of cast aluminium in silver grey (RAL 9006) and is waterproof according to IP66 and impact-resistant according to IK08. As a result the lamp withstands rain, dust and wind and works at temperatures from -40 to +45 degrees. The lifetime is more than 108,000 burning hours (L70B10) and the lamp has surge protection up to 10 kV. You get a 5-year warranty. Have the electrical connection carried out by a qualified electrician.

Technical specifications

In short: power 1000W, luminous flux 170,000 lumens, efficiency 170 lm/W, light colour 5000K, optic 20°, IP66, IK08, RAL 9006, operating temperature -40 to +45 °C, lifetime >108,000 hours (L70B10), surge protection 10 kV, supplied without driver and 5-year warranty.

Frequently asked questions

Is the driver included?

No. The lamp is supplied without driver. You order a matching driver of 1000W separately; you will find it under the matching products.

Which driver should I choose?

Choose a DALI or DMX driver if you integrate the lighting into a lighting control system. If you only want simple dimming or on/off switching, a 1-10V driver is sufficient if one is available for this power.

Can you make a lighting plan?

Yes. Send us the dimensions of the site, the mast height and the desired light level, and we will make a lighting calculation.

You can download the datasheet on this product page.
