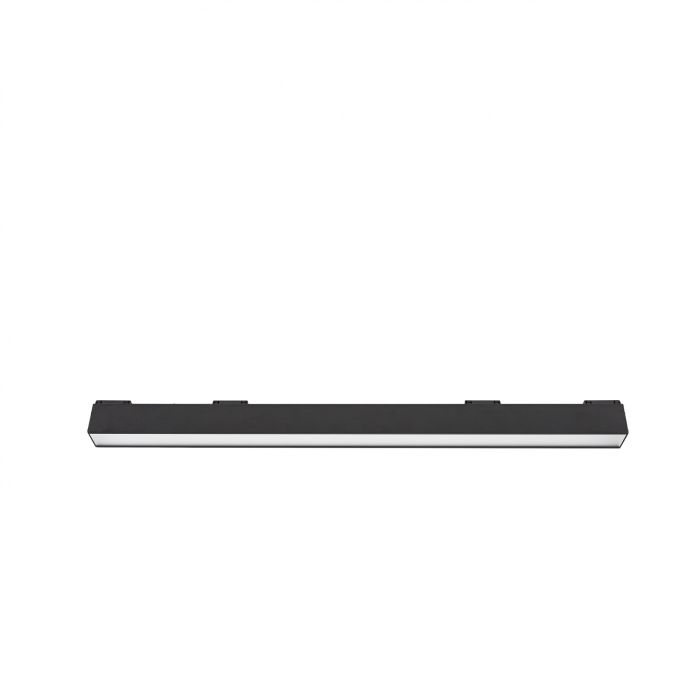

LED Line Module System Line M 25W K3000 1445 lm CRI90 667 mm – 24V

This fitting has a power of 25W and gives 1445 lumens. You use it for homes, offices and shops. Choose the number of fittings based on the size of the room and the desired light level; we are happy to help.

Connection: what do you need?

Please note: this fitting works on 24V and must not be connected directly to 230V. No power supply is included. You need a 24V LED power supply, which you order separately. Choose a power supply with at least the total power of all connected fittings plus about 20% reserve; for one fitting of 25W the smallest power supply of 40W is sufficient. You will find suitable power supplies below under the matching products.

Light and technology

The light colour is 3000K warm white, an atmospheric, warm light colour that looks calm and homely. The beam angle is 120 degrees, a wide light distribution that lights the room evenly. The colour rendering is CRI 90, so colours look very natural. The fitting is not dimmable. With IP20 it is intended for dry indoor spaces. The lifetime is approximately 50,000 burning hours. The dimensions are 38.5 × 50 × 667 mm.

Technical specifications

In short: power 25W, luminous flux 1445 lm, light colour 3000K, beam angle 120°, CRI 90, IP20, dimensions 38.5 × 50 × 667 mm, lifetime 50,000 hours, 24V, power supply not included, 5-year warranty.

Frequently asked questions

Can I connect this fitting directly to 230V?

No. You need a 24V LED power supply, which is available separately.

Can I use this fitting outdoors or in the bathroom?

No, with IP20 it is intended for dry indoor spaces.

Can I dim the fitting?

No, this fitting is not dimmable.

The light source is included.

Please note: this module runs on 24V, not directly on 230V. A 24V LED driver is not included.
