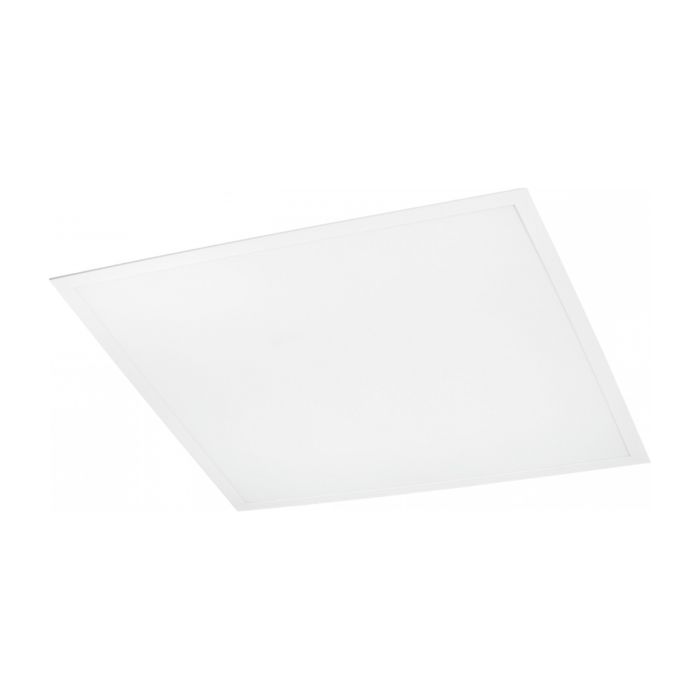

LED Panel 62x62cm 90 lm/W 40W IP20

This LED panel has a power of 40W and gives 3600 lumens. The housing is white and made of aluminium, steel and plastic. You use it for offices, schools, practice rooms and shops. An LED panel of this size fits directly into a suspended ceiling. If you don't have a suspended ceiling, mount it against a solid ceiling with a surface mounting frame or suspend it with a suspension kit. You will find the matching surface mounting frame and suspension kit below under the matching products; they are optional.

Installation and operation

This model can be both recessed and surface-mounted. The cut-out size is 590 × 590 mm.

Connection: what do you need?

The driver is built in: you connect the fitting directly to 230V and do not need a separate power supply or transformer. Have the connection to the mains carried out by a qualified electrician. The fitting has protection class I and must be connected to an earthed connection.

Light and technology

With this product you choose the light colour yourself: 4000K or 6000K. Warm white (around 3000K) gives an atmospheric, homely look; neutral white (4000K) is bright and natural; cool white (6000K) is fresh and businesslike. The beam angle is 120 degrees, a wide light distribution that lights the room evenly. The colour rendering is CRI 80. The fitting is not dimmable. With IP20 it is intended for dry indoor spaces. The lifetime is approximately 26,000 burning hours. The dimensions are 620 × 620 × 28 mm.

Technical specifications

In short: power 40W, luminous flux 3600 lm, light colour 4000K, beam angle 120°, CRI 80, IP20, cut-out 590x590 mm, dimensions 620 × 620 × 28 mm, lifetime 26,000 hours, driver built in, 230V, 3-year warranty.

Frequently asked questions

Do I need a separate driver or transformer?

No, the driver is built in. You connect the fitting directly to 230V.

What size hole should I cut?

The cut-out size is 590 × 590 mm.

Can I use this fitting outdoors or in the bathroom?

No, with IP20 it is intended for dry indoor spaces.
