LED Panel Recessed Frame 62x62 cm | Plasterboard Ceiling

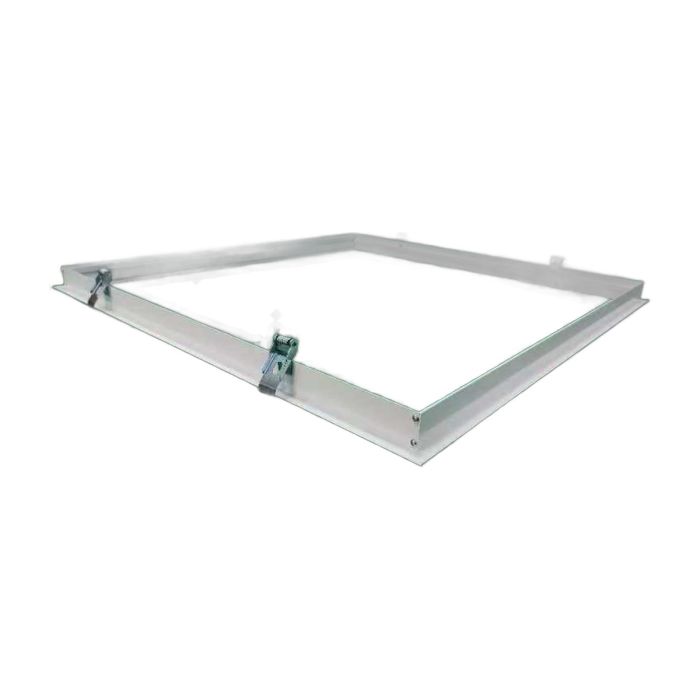

With this recessed frame of 62x62 cm you install an LED panel in a plasterboard ceiling. You make an opening in the ceiling, place the frame and lay the panel in it, so that it lies flush with the ceiling.

The frame is 31 mm deep and is fixed with screws. It is intended for thin edge-lit panels of 620 x 620 mm.

Which frame should I choose?

If you have a suspended ceiling, you don't need a frame: the panel simply sits in the grid. You use a surface mounting frame on a solid ceiling of concrete, wood or plasterboard if you don't want to cut into the ceiling. With a recessed frame, on the other hand, you build the panel flush into a plasterboard ceiling. With a surface mounting frame, pay attention to the thickness of your panel: thin edge-lit panels of 9 to 15 mm fit frames of 43 and 58 mm, backlit panels of 28 to 30 mm only a frame of 58 mm.

Technical specifications

Dimensions 620 x 620 x 31 mm, screw connection.
