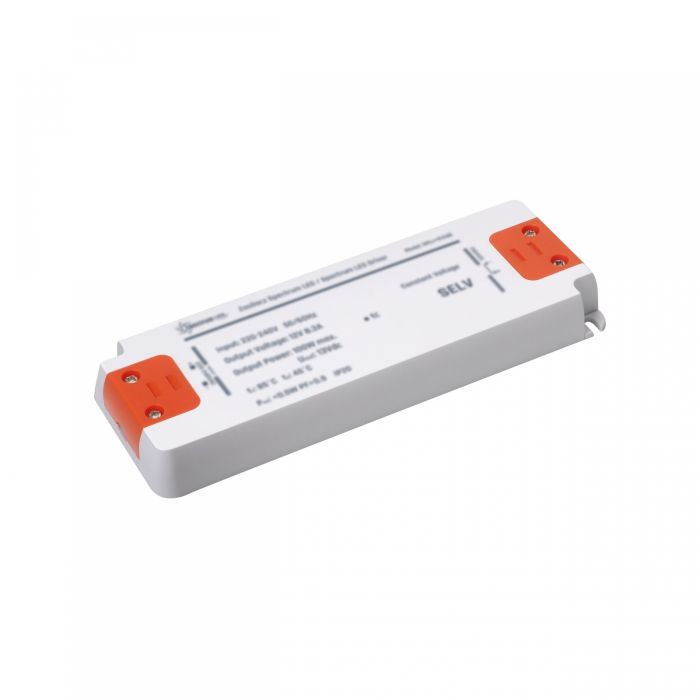

LED strip power supply/driver 12 V – 60 W – 5 A – IP20

This LED power supply converts 230V mains voltage to 12V DC and supplies a maximum of 60 watts (5 amps). You use it for 12V LED strips and other 12V LED lighting. The IP20 version is intended for dry indoor spaces, for example in a cabinet or lowered ceiling.

Which power do I need?

Add up the power of all connected 12V lighting and choose a power supply with about 20% reserve. With this 60W power supply you can therefore connect up to about 50 watts of LED lighting. Example: with this power supply, a strip of 10 watts per metre can be up to about 5 metres long. Please note: a 12V power supply only goes with 12V lighting. Have the connection to the mains carried out by a qualified electrician.

Technical specifications

In short: input 230V, output 12V DC, power 60W, 5 A, IP20.

Frequently asked questions

Is this power supply dimmable?

No, this is an ordinary constant voltage power supply. To dim, use an LED controller or dimmer between power supply and strip.

Can I use a larger power supply than needed?

Yes. A power supply only delivers the power the lighting demands; a larger power supply is no problem.
