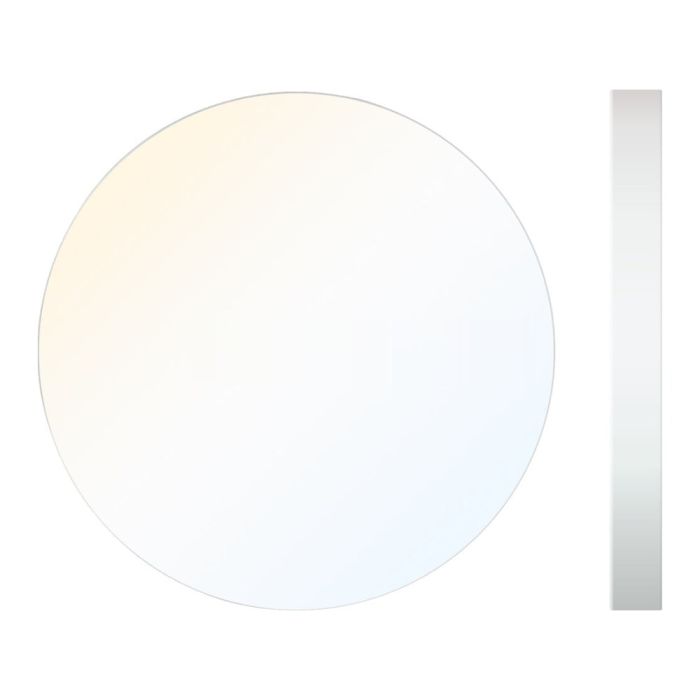

LED Surface Panel Round Ø50 cm | 48W | CCT Selectable | 3000K-6000K

This round LED surface panel of Ø50 cm is a powerful ceiling light for rooms without a suspended ceiling. With 48W the panel delivers 4800 lumens, enough to brightly light a living room, kitchen, office or practice room. The panel has a frameless design, which makes it look sleek and modern.

With the DIP switch you choose the light colour before installation: 3000K warm white, 4000K neutral white or 6000K cool white. This way one panel suits every room. The driver is built in and the panel runs on 220-240V mains voltage.

Installation

The panel is mounted directly against the ceiling and needs no recess depth, so it is suitable for concrete, wood and plasterboard. The panel is 42 mm high.

Have the electrical connection carried out by a qualified electrician.

Technical specifications

The panel has a diameter of 500 mm and a height of 42 mm. The power is 48W with a luminous flux of 4800 lumens, which amounts to 100 lumens per watt, at a beam angle of 120°. You set the light colour to 3000K, 4000K or 6000K with the DIP switch. The colour rendering is CRI 80 or higher. The panel has protection rating IP20, a white finish and is not dimmable.

Frequently asked questions

How do I set the light colour?

With the DIP switch you choose 3000K, 4000K or 6000K before installation.

Is this panel dimmable?

No, this version is not dimmable. If you want to dim, choose one of our surface panels with remote control.

Where can you use it? The protection rating is IP20. This means: for dry indoor spaces only, such as living room, bedroom, hallway, office or shop. Do not use it in the shower or directly above a bath or shower, not outdoors and not in damp spaces such as a stable or an unheated barn.

Do you have a question about this product? Email us at info@dimay.com.
