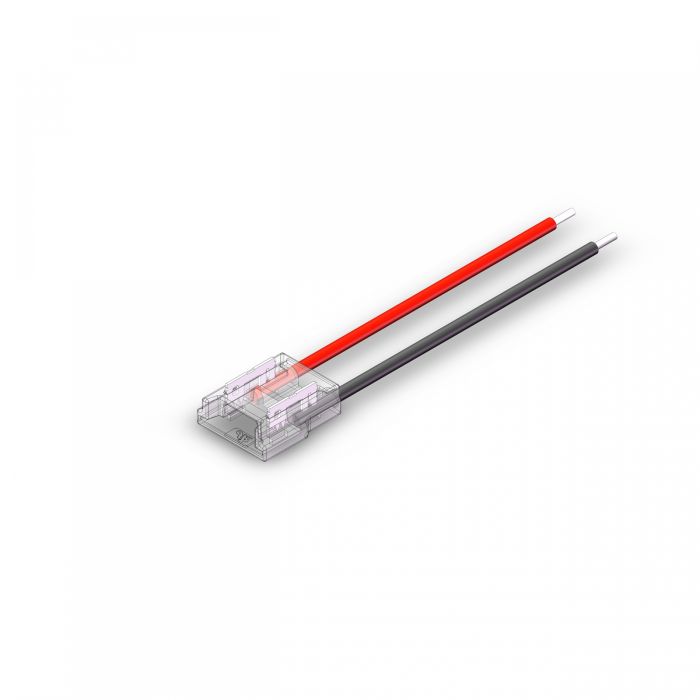

Strip-to-Cable Connector for 10 mm COB/SMD LED Strip with 15 cm Cable

With this click connector you connect the start of the strip to a cable to the power supply or controller, without soldering. This version is suitable for COB strips 10 mm wide.

What to look out for?

Always choose a connector with the same width and type as your strip: a COB strip has different connectors than an SMD strip, and an RGB strip has more contacts than a single-colour strip. Cut the strip at a cutting point, slide it into the connector until the contacts sit properly on the copper pads, and close the clip. Mind the plus and minus. The connector works on low voltage (12V or 24V) and belongs between the LED power supply and the strip, never on 230V.

Frequently asked questions

Do I need to solder?

No, this is a click connector that you install without soldering.
